Battery Voltage; Terminal Name; Color of wiring- Page 685

ELECTRICAL SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

9-S47

9Y1210824ELS0039US0

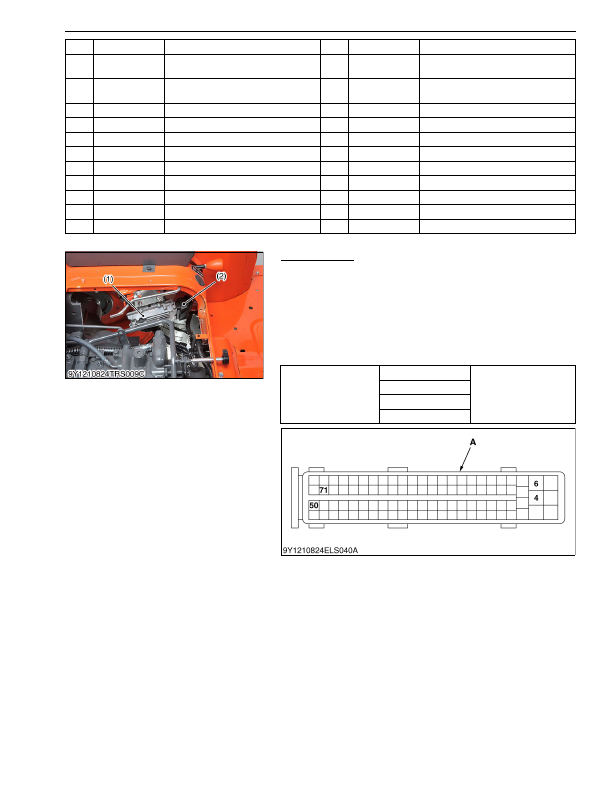

Battery Voltage

1. Disconnect the connector (2).

2. Measure the voltage between terminal

50

 (+) and chassis.

3. Turn the main switch

ON

.

Measure the voltage between terminal

4

 (+) and chassis.

4. Measure the voltage between terminal

6

 (+) and chassis.

5. Measure the voltage between terminal

71

 (+) and chassis.

6. If the measurement is not approximately battery voltage, check

the relating electric circuit.

9Y1210824ELS0040US0

37

B

Intake Throttle Valve Position Sensor

(Signal)

84

R

Intake Throttle Valve Motor (DC Motor +)

38

B

DPF Differential Pressure Sensor

(Signal)

85

R

Intake Throttle Valve Motor (DC Motor −)

39

R

Crankshaft Position Sensor (+)

86

Y

Intake Air Temperature Sensor (Signal)

40

–

–

87

–

–

41

–

–

88

–

–

42

–

–

89

Y

SCV (−)

43

–

–

90

–

–

44

B

Camshaft Position Sensor (−)

91

–

–

45

R

Camshaft Position Sensor (+)

92

–

–

46

W

Camshaft Position Sensor (Signal)

93

–

–

47

–

–

94

–

–

No.

Color of wiring

Terminal Name

No.

Color of wiring

Terminal Name

Voltage

Terminal

50

 – Chassis

Approx. battery voltage

Terminal

4

 – Chassis

Terminal

6

 – Chassis

Terminal

71

 – Chassis

(1) Engine ECU

(2) Connector

A : Connector of Wire Harness Side
