TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-S93

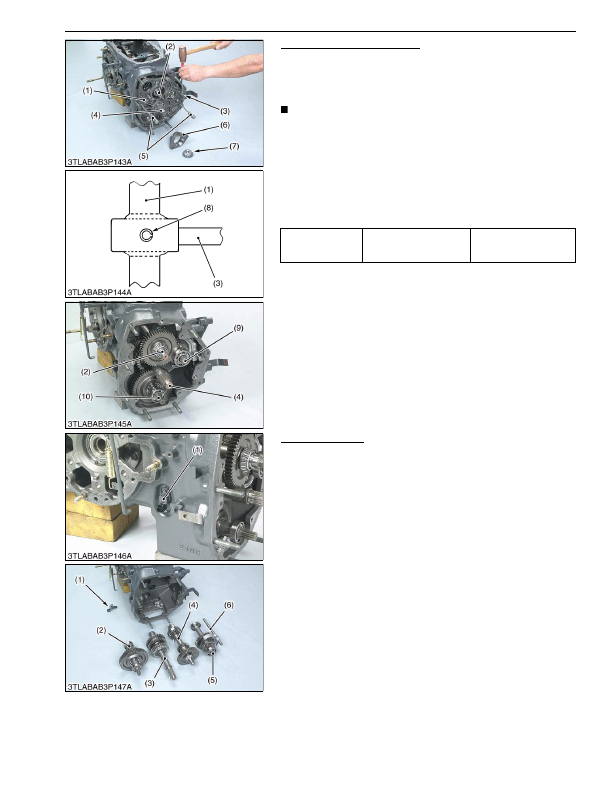

Transmission Bearing Holder

1. Remove the transmission bearing holder mounting screws.

2. Tap out the spring pin (8) on the shift fork rod (3).

3. Jack up the bearing holder (1) by using the two jack bolts (5)

until the taper roller bearing (7) can be removed.

NOTE

• Jack up the bearing holder while hitting the two shafts (2),

(4) by copper hammer or soft hammer.

4. Jack up more and remove the transmission bearing holder (1).

(When reassembling)

• Tap in the transmission bearing holder with soft hammer until

contact  to  transmission  case,  and  then  tighten  the  screws  to

specified torque.

• Tap  in  the  spring  pin  (8)  so  that  its  split  portion  may  face

forward. (Refer to figure.)

9Y1210824TRS0039US0

Shaft Assemblies

1. Remove the traveling speed sensor (1).

2. Remove the spiral bevel pinion shaft assembly (4), range gear

shaft  assembly  (5)  with  shift  fork  (6)  and  PTO  drive  shaft

assembly (3).

3. Remove the front wheel drive shaft (2).

9Y1210824TRS0040US0

Tightening torque

Transmission bearing

holder mounting screw

48 to 55 N·m

4.9 to 5.7 kgf·m

36 to 41 lbf·ft

(1) Transmission Bearing Holder

(2) Spiral Bevel Pinion Shaft

(3) Shift Fork Rod for Range Gear Shift

(4) PTO Drive Shaft

(5) Jack Bolt

(6) Pinion Bearing Case

(7) Taper Roller Bearing

(8) Spring Pin

(9) Range Gear Shaft

(10) Front Wheel Drive Shaft

(1) Traveling Speed Sensor

(2) Front Wheel Drive Shaft

(3) PTO Drive Shaft

(4) Spiral Bevel Pinion Shaft

(5) Range Gear Shaft

(6) Shift Fork

KiSC issued 03, 2016 A
