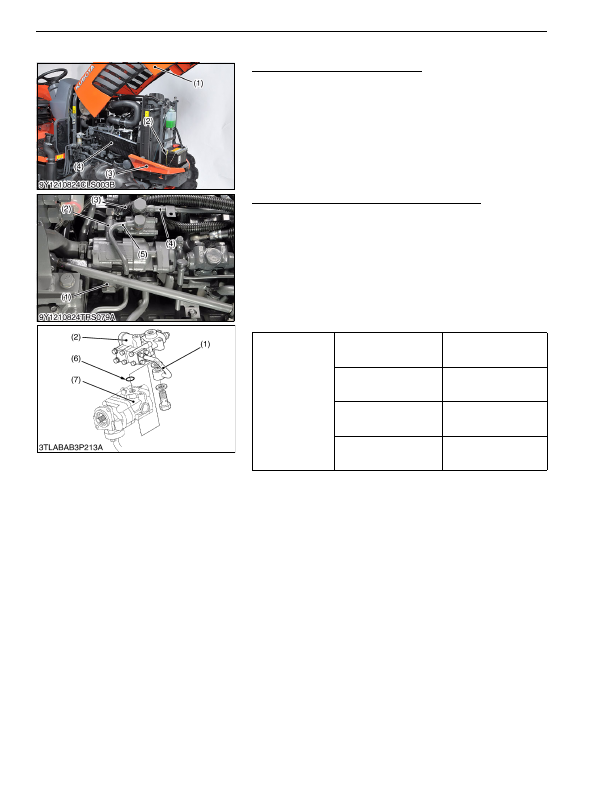

(4) Regulating Valve

Front Grille, Skirt and Battery Cable

1. Open the bonnet (1) and disconnect the battery negative cable

(2).

2. Remove the skirt RH (4). and front grille (3).

9Y1210824TRS0079US0

Hydraulic Pipes and Regulating Valve Assembly

1. Disconnect  the  PTO  (GST)  delivery  pipe  (5),  power  steering

return  hose  (3)  and  power  steering  delivery  pipe  (4)  from

regulating valve assembly (2).

2. Remove the delivery pipe (1).

3. Loosen and remove the regulating valve mounting screws.

4. Remove  the  regulating  valve  assembly  (2)  from  the  power

steering hydraulic pump (7).

(When reassembling)

• Install the copper washers firmly.

• Apply grease to the O-ring (6) and be careful not to damage it.

9Y1210824TRS0080US0

(1) Bonnet

(2) Battery Negative Cable

(3) Front Grille

(4) Skirt RH

Tightening torque

Joint bolt for PTO (GST)

delivery pipe (5) and

regulating valve

35 to 39 N·m

3.5 to 4.0 kgf·m

26 to 28 lbf·ft

Joint bolt for power steering

delivery pipe (4) and

regulating valve

40 to 49 N·m

4.0 to 5.0 kgf·m

29 to 36 lbf·ft

Joint bolt for delivery pipe

(1) and hydraulic pump

40 to 49 N·m

4.0 to 5.0 kgf·m

29 to 36 lbf·ft

Regulating valve mounting

screws

18 to 20 N·m

1.8 to 2.1 kgf·m

13 to 15 lbf·ft

(1) Delivery Pipe

(2) Regulating Valve Assembly

(3) Power Steering Return Hose

(4) Power Steering Delivery Pipe

(5) PTO (GST) Delivery Pipe

(6) O-ring

(7) Power Steering Hydraulic Pump
