TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-S99

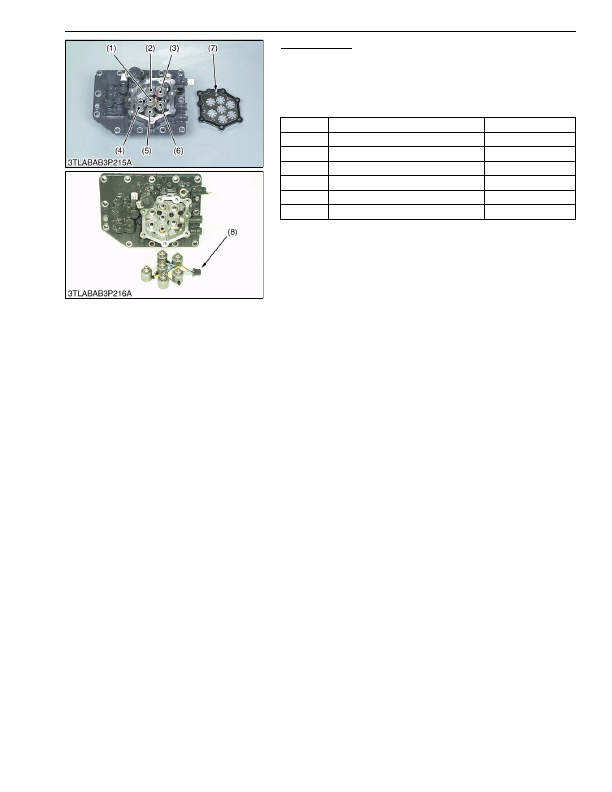

Solenoid Valve

1. Remove the cover (7).

2. Disconnect the connector (8) and remove the solenoid valves.

(When reassembling)

• Be sure to install the each solenoid valve to their original

positions as shown in the photo and table below.

9Y1210824TRS0084US0

No.

Solenoid Name

Color of wiring

(6)

Shift Solenoid 1 (1st shift)

Black

(1)

Shift Solenoid 2 (2nd shift)

White

(3)

Shift Solenoid 3 (3rd shift)

Red

(2)

Shift Solenoid 4 (4th shift)

Green

(5)

Shift Solenoid 5 (Sub-range shift)

Blue

(4)

Shift Solenoid 6 (Main range shift)

Yellow

(1) Solenoid 2

(2) Solenoid 4

(3) Solenoid 3

(4) Solenoid 6

(5) Solenoid 5

(6) Solenoid 1

(7) Cover

(8) Connector

KiSC issued 03, 2016 A
