FRONT AXLE

L3560, L4060, L4760, L5060, L5460, L6060, WSM

6-S16

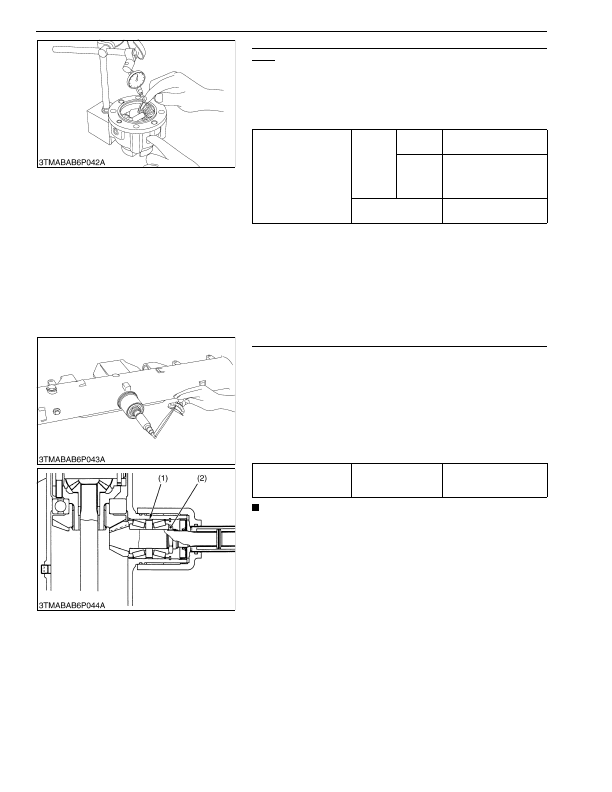

Backlash between Differential Pinion and Differential Side
Gear

1. Set a dial gauge (lever type) on a tooth of the differential pinion.

2. Fix the differential side gear and move the differential pinion to

measure the backlash.

3. If the measurement exceeds the factory specifications, adjust

with the differential side gears shims.

(Reference)

• Thickness of adjusting shims

0.4 mm (0.016 in.)

0.6 mm (0.024 in.)

0.8 mm (0.031 in.)

1.0 mm (0.039 in.)

1.2 mm (0.047 in.)

• Tooth contact: More than 35 %

9Y1210824FAS0026US0

Turning Torque of Spiral Bevel Pinion Shaft (Pinion Shaft Only)

1. Install the spiral bevel pinion shaft assembly only to the front

axle case.

2. Measure the turning torque of spiral bevel pinion shaft.

3. If  the  turning  torque  is  not  within  the  factory  specifications,

adjust with the lock nut.

If the turning torque is not able to adjust by lock nut (2), change

the thickness of collar (1) and adjust with lock nut (2) again.

(Reference)

• Standard size of collar (1): 10.0 mm (0.394 in.) of thickness

NOTE

• After turning torque adjustment, be sure to stake the lock

nut.

9Y1210824FAS0027US0

Backlash between

differential pinion and

differential side gear

Factory

specifica-

tion

L3560

L4060

0.10 to 0.30 mm

0.0040 to 0.011 in.

L4760

L5060

L5460

L6060

0.20 to 0.30 mm

0.0079 to 0.011 in.

Allowable limit

0.40 mm

0.016 in.

Turning torque of spiral

bevel pinion shaft

Factory specification

0.98 to 1.1 N·m

0.10 to 0.12 kgf·m

0.73 to 0.86 lbf·ft

(1) Collar

(2) Lock Nut

KiSC issued 03, 2016 A
