9 ELECTRICAL SYSTEM
background image

ELECTRICAL SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

9-S24

(7)  Mode "F" (GST Valve FIne-adjustment Mode) Setting the Function of

Proportional Reducing Valve

 CAUTION

• Use extra caution when setting the Mode "F", because the

tractor will move and stop automatically.
NOTE

• When the main ECU or GST valve is replaced, this

adjustment is required.

1. Park the machine on firm and level ground.

2. Set the parking brake.

3. While holding down the display mode switch, start the engine.

4. Mode selection display

(a)

 is indicated on the LCD. Press the

display mode switch. The buzzer rings and the marked display

moves.

5. Select the Mode

"F"

.

6. Hold down the display mode switch for more than 2 seconds.

7. When

"GST Valve Fine-adjustment Mode"

 is displayed

(b)

,

release the display mode switch.

(To be continued)

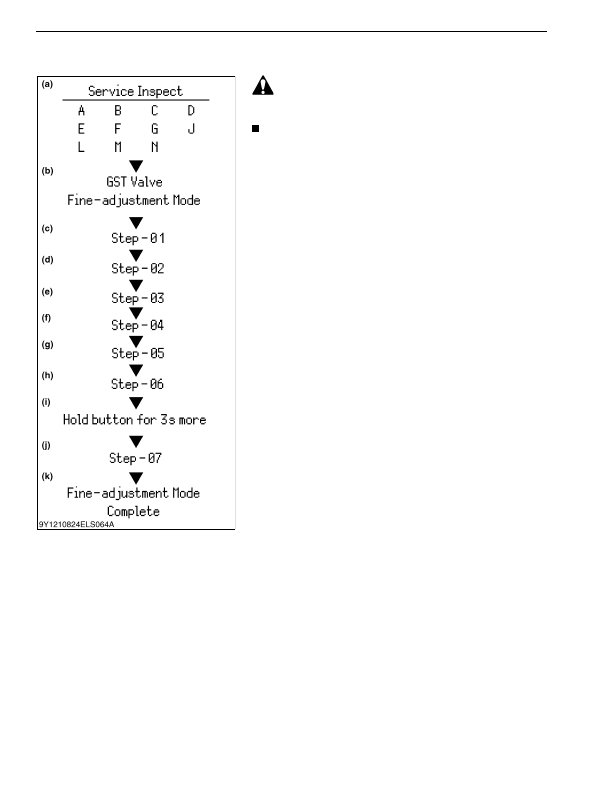

(a) Mode Selection Display
(b) Information Display
(c) Setting Display-1
(d) Setting Display-2
(e) Setting Display-3

(f)

Setting Display-4

(g) Setting Display-5
(h) Setting Display-6
(i)

Adjusting Display

(k) Correct Preserving Display
