(4)  Mode "C" (PTO Coefficient Number Input Mode) Input the Numeric Code

Number for PTO Speed into the Electronic Instrument Panel

NOTE

• When the electronic instrument panel is replaced, this

operation is required.

1. While holding down the display mode switch, turn on the main

switch.

2. Mode selection display

(a)

 is indicated on the LCD.

3. Press  the  display  mode  switch.  The  buzzer  rings  and  the

marked display moves.

4. Select the Mode

 "C"

.

5. Hold down the display mode switch for more than 2 seconds.

6.

PTO Coefficient No."1" "2" "3" "4"

 is displayed

(b)

.

(Numerical Modification)

• Set the desired PTO coefficient as follow :

• Each  time  the  display  mode  switch  is  pressed,  the  marked

display shifts to the next digit. Shift the marked display to the

desired position.

7. Hold down the display mode switch more than 2 seconds.

8. When the PTO coefficient has been input, hold down the display

mode  switch  for  more  than  2  seconds  to  preserve  the  PTO

coefficient No. in the panel's memory.

9.

"OK"

 is displayed

(d)

 : The operation coefficient has been input

correctly.

10. If

"NG"

 is displayed: Incorrect input. Repeat the procedure.

11. Turn off the main switch.

9Y1210824ELS0014US0

Operation Coefficient No.

Tractor Model

Transmission Model

1

L3560, L4060, L4760,

L5060

Manual transmission

GST

L3560

HST

2

L4060

HST

3

L4760

HST

4

L5460, L6060

HST

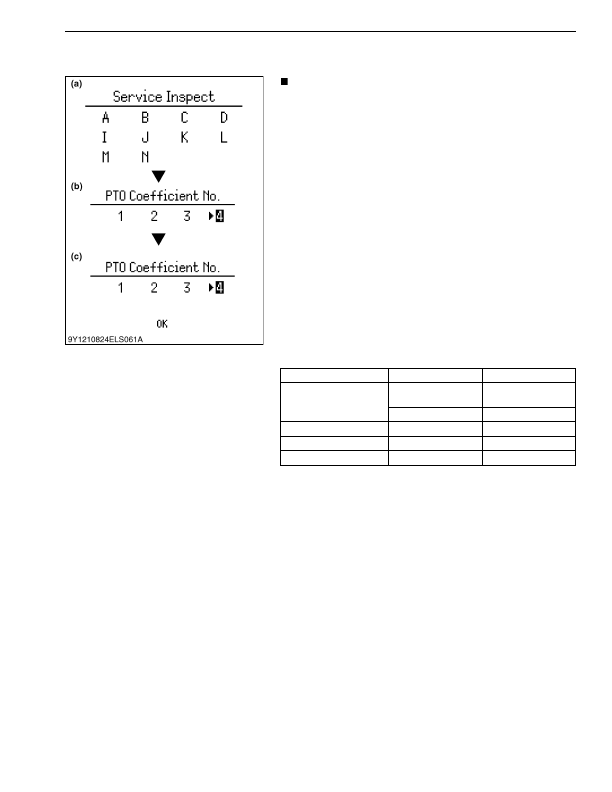

(a) Mode Selection Display
(b) Input Display

(c) Confirmation Display
