(4) Checking by Main Electric Control Unit (Main ECU); Manual Transmission; Terminal Name- Page 677

ELECTRICAL SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

9-S39

(4)  Checking by Main Electric Control Unit (Main ECU)

Manual Transmission

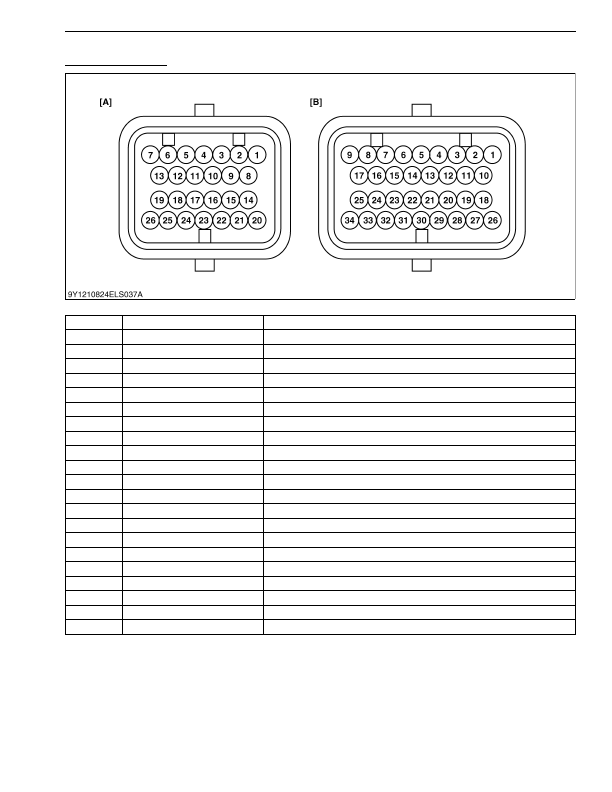

Connector A (26P Connector) of Wire Harness Side

No.

Color of wiring

Terminal Name

1

B

GND (Ground for Circuit Line)

2

–

–

3

–

–

4

–

–

5

–

–

6

P/L

PTO Solenoid

7

R/Y

+12 V (Power Source from Main Switch)

8

R/W

+5 V (Power source for sensor)

9

Y

CAN (H)

10

G

CAN (L)

11

B/W

Starter Relay

12

W/G

DPF Buzzer

13

–

–

14

B/W

GND (Ground for Sensor)

15

P

TXD (For Check)

16

–

–

17

–

–

18

R

+12 V (Power Source from Battery)

19

–

–

20

–

–

21

V

RXD (For Check)
