ELECTRICAL SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

9-S59

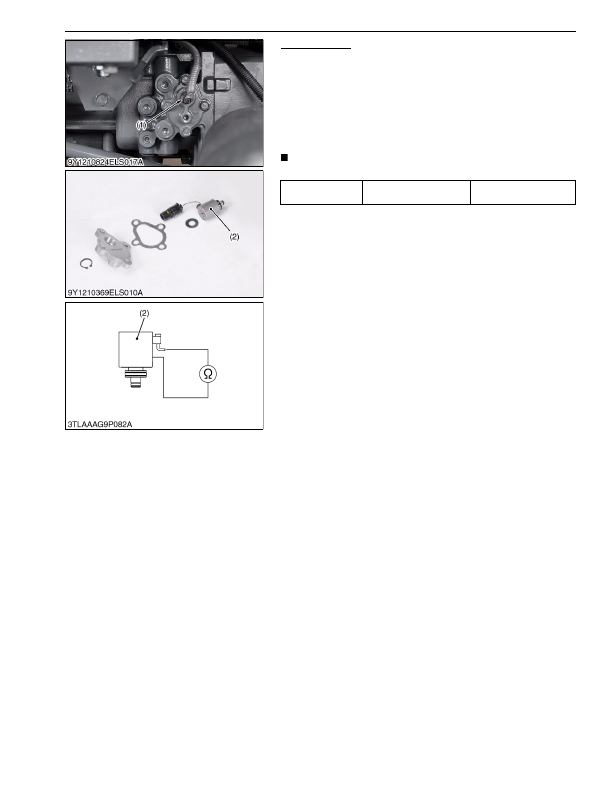

Hi-Lo Solenoid

1. Remove the cover.

2. Disconnect the connector (1).

3. Remove the Hi-Lo solenoid valve assembly.

4. Disassembling the Hi-Lo solenoid valve assembly.

5. Measure the resistance with an ohmmeter across the terminal

on the connector and valve body.

6. It is OK if the resistance comes to have shown in the table

below.

NOTE

• It is not necessary to adjust any kind of mode.

9Y1210824ELS0057US0

Resistance

Hi-Lo solenoid terminal to

valve body

10 to 12 Ω

(1) Connector

(2) Hi-Lo Solenoid

KiSC issued 03, 2016 A
