Crankshaft Bearing 1 Replacing Tool
Application

• To press out and press fit the crankshaft bearing 1.

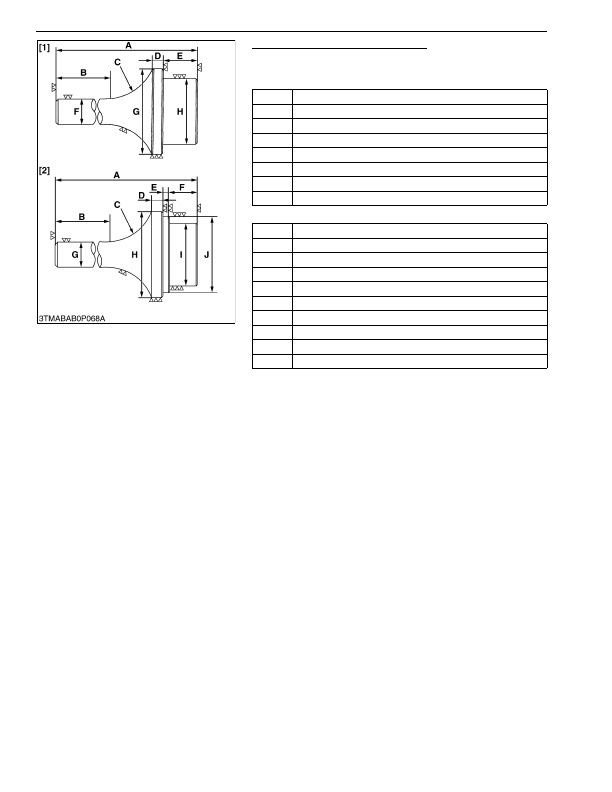

[1] Extracting tool

[2] Inserting tool

9Y1210824GEG0103US0

A

135 mm (5.31 in.)

B

72 mm (2.8 in.)

C

40 mm radius (1.6 in. radius)

D

10 mm (0.39 in.)

E

20 mm (0.79 in.)

F

20 mm dia. (0.79 in. dia.)

G

64.80 to 64.90 mm dia. (2.552 to 2.555 in. dia.)

H

59.80 to 59.90 mm dia. (2.355 to 2.358 in. dia.)

A

130 mm (5.12 in.)

B

72 mm (2.8 in.)

C

40 mm radius (1.6 in. radius)

D

9 mm (0.4 in.)

E

4 mm (0.2 in.)

F

20 mm (0.79 in.)

G

20 mm dia. (0.79 in. dia.)

H

68 mm dia. (2.7 in. dia.)

I

59.80 to 59.90 mm dia. (2.355 to 2.358 in. dia.)

J

64.80 to 64.90 mm dia. (2.552 to 2.555 in. dia.)
