GENERAL

L3560, L4060, L4760, L5060, L5460, L6060, WSM

G-58

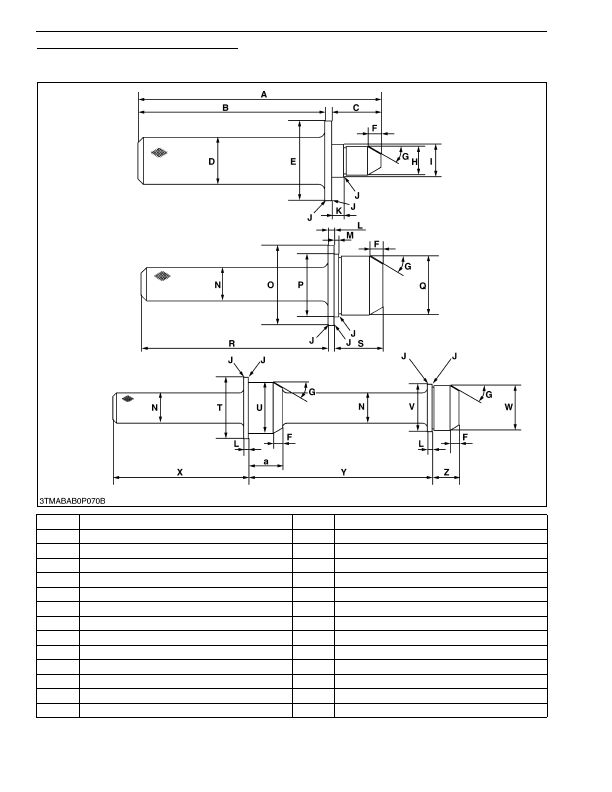

Balancer Metal Replacing Tool (for Fitting)
Application

• To press fit the metal bearing.

9Y1210824GEG0105US0

A

182 mm (7.17 in.)

O

60 mm dia. (2.4 in. dia.)

B

140 mm (5.51 in.)

P

46.950 to 46.975 mm dia. (1.8485 to 1.8494 in. dia.)

C

37 mm (1.5 in.)

Q

43.934 to 43.950 mm dia. (1.7297 to 1.7303 in. dia.)

D

35 mm dia. (1.4 in. dia.)

R

140 mm (5.51 in.)

E

60 mm dia. (2.4 in. dia.)

S

36 mm (1.4 in.)

F

10 mm (0.39 in.)

T

60 mm dia. (2.4 in. dia.)

G

0.52 rad (30 °)

U

46.950 to 46.975 mm dia. (1.8485 to 1.8494 in. dia.)

H

21.947 to 21.960 mm dia. (0.86406 to 0.86456 in. dia.)

V

44.950 to 44.975 mm dia. (1.7697 to 1.7706 in. dia.)

I

24.959 to 24.980 mm dia. (0.98264 to 0.98346 in. dia.)

W

41.934 to 41.950 mm dia. (1.6510 to 1.6515 in. dia.)

J

Chamfer 0.3 mm (0.01 in.)

X

145 mm (5.71 in.)

K

8.8 to 9.2 mm (0.35 to 0.36 in.)

Y

195.25 to 195.75 mm (7.6870 to 7.7066 in.)

L

5 mm (0.2 in.)

Z

29 mm (1.1 in.)

M

3.3 to 3.7 mm (0.13 to 0.14 in.)

a

36 mm (1.4 in.)

N

25 mm dia. (0.98 in. dia.)

KiSC issued 03, 2016 A
