GENERAL

L3560, L4060, L4760, L5060, L5460, L6060, WSM

G-68

Pump Adaptor
Application

• Use for examining the main hydraulic pump.

NOTE

• When you use, attach with following parts.

O-ring: 04811-00180

• This adaptor is changed from Adaptor 61 of flowmeter adaptor set (see page G-64).

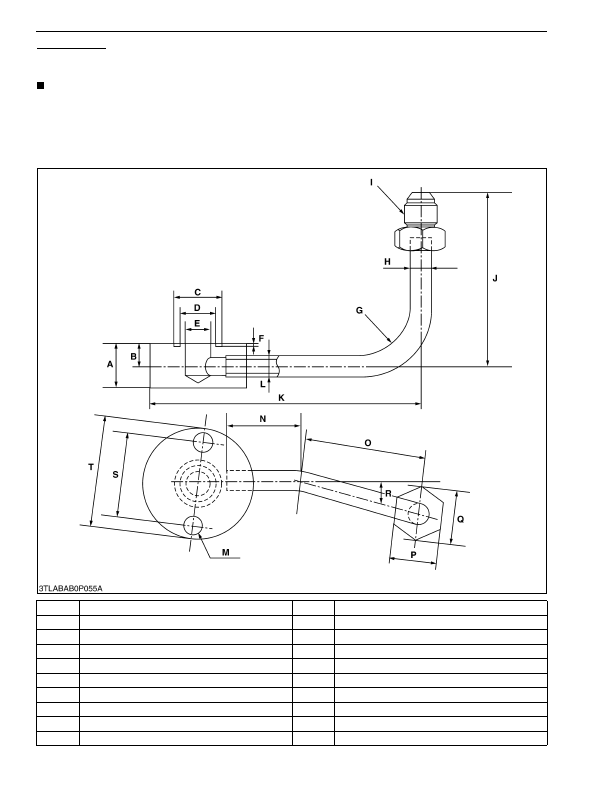

• This special tool is not available, so make it. Refer to the figure.

(Reference)

• From size

"A"

 to size

"R"

 are same size as adaptor

61

.

9Y1210824GEG0116US0

A

22 mm (0.872 in.)

K

135 mm (5.31 in.)

B

11 mm (0.437 in.)

L

7 mm dia. (0.28 in. dia.)

C

24 mm dia. (0.94 in. dia.)

M

8.5 mm dia. (0.33 in. dia.)

D

18 mm dia. (0.71 in. dia.)

N

37 mm (1.46 in.)

E

12 mm dia. (0.47 in. dia.)

O

61.5 mm (2.42 in.)

F

1.7 to 1.9 mm (0.067 to 0.075 in.)

P

24 mm (0.94 in.)

G

30 mm Round (1.18 in. Round)

Q

27.7 mm (1.09 in.)

H

10 mm dia. (0.39 in. dia.)

R

0.244 rad (14 °)

I

G 3/8

S

40 mm (1.57 in.)

J

89 mm (3.50 in.)

T

60 mm dia. (2.36 in. dia.)
