CABIN

L3560, L4060, L4760, L5060, L5460, L6060, WSM

10-S49

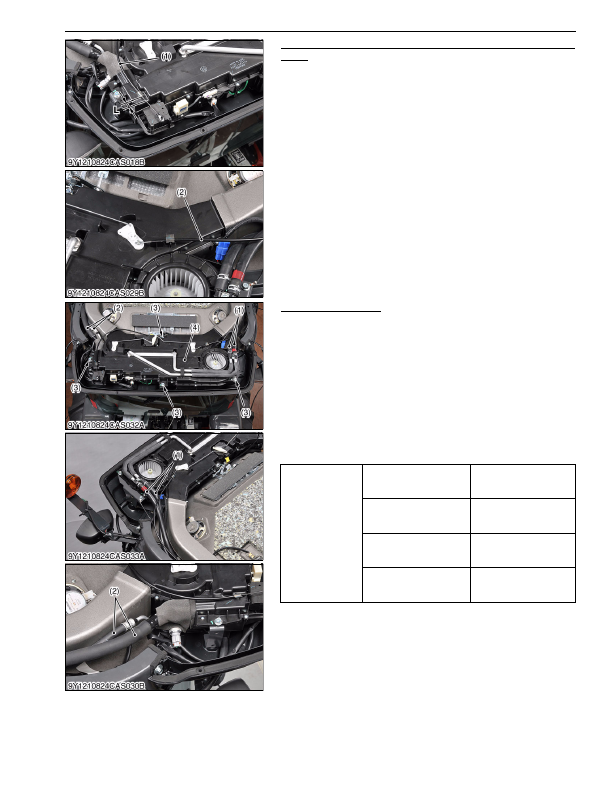

Recirculation / Fresh Air Motor Cable and Temperature Motor
Cable

1. Disconnect the recirculation / fresh air motor cable (1).

2. Disconnect the temperature motor cable (2).

9Y1210824CAS0081US0

Air Conditioning Unit

1. Disconnect the heater hoses (1).

2. Disconnect the air conditioner pipes (2).

3. Remove the screws (3), then the air conditioning unit (4).

4. Remove the duct hoses.

(When reassembling)

• When  reconnecting  the  cooler  pipes  with  the  unit,  apply

compressor oil (DENSO OIL8 or equivalent) to O-rings.

• When  remounting  the  unit,  tighten  five  screws  by  hand  and

finally retighten them after aligning the inner roof duct with the

unit duct.

• When connecting the heater hose with A/C unit, hose should be

put into the A/C unit pipe more than 30 mm (1.2 in.)

9Y1210824CAS0082US0

(1) Recirculation / Fresh Air Motor

Cable

(2) Temperature Motor Cable

L : 3.0 to 15 mm (0.12 to 0.59 in.)

Tightening torque

A/C unit mounting screw

(M6)

4.0 to 6.8 N·m

0.40 to 0.70 kgf·m

2.9 to 5.0 lbf·ft

A/C unit mounting screw

(M8)

9.81 to 11.6 N·m

1.00 to 1.19 kgf·m

7.24 to 8.60 lbf·ft

Low pressure pipe (Cooler

pipe (suction)) retaining nut

7.90 to 11.8 N·m

0.806 to 1.20 kgf·m

5.83 to 8.70 lbf·ft

High pressure pipe (Cooler

pipe (liquid)) retaining nut

11.8 to 14.7 N·m

1.21 to 1.49 kgf·m

8.71 to 10.8 lbf·ft

(1) Heater Hose

(2) Air Conditioner Pipe

(3) Screw

(4) Air Conditioner Unit
