CABIN

L3560, L4060, L4760, L5060, L5460, L6060, WSM

10-S51

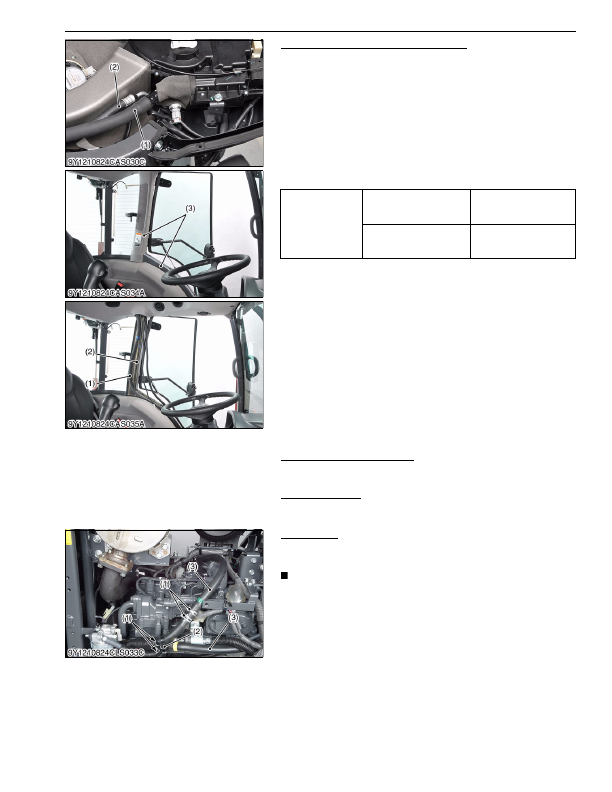

High Pressure and Low Pressure Pipes

1. Remove the outer roof.

2. Disconnect  the  high  pressure  pipe  2  (2),  then  cap  the  open

fitting immediately to keep moisture out of the system.

3. Remove the rubber and disconnect the low pressure pipe (1),

then cap the open fittings immediately to keep moisture out of

the system.

4. Remove the inner covers (3).

(When reassembling)

• Replace the rubber with a new one.

• Apply compressor oil (DENSO ND-OIL 8 or equivalent) to the

O-rings and be careful not to damage them.

9Y1210824CAS0086US0

(5)  Removing Heater Hoses

Front Grill, Skirt and Bonnet

• See page 10-S35.

9Y1210824CAS0087US0

Draining Coolant

• See page 10-S34.

9Y1210824CAS0078US0

Hose Clamp

1. Remove the hose bands (1).

2. Remove the hose clamp (2).

NOTE

• Before disconnecting the heater hoses (3), put the parting

marks on the hoses for making proper reconnecting.

3. Disconnect the heater hoses (3), then remove them from under

the cabin.

(When reassembling)

• Connecting the heater hoses at their original position.

9Y1210824CAS0088US0

Tightening torque

High pressure pipe 2

retaining nut

11.8 to 14.7 N·m

1.21 to 1.49 kgf·m

8.71 to 10.8 lbf·ft

Low pressure pipe retaining

nut

7.90 to 11.8 N·m

0.806 to 1.20 kgf·m

5.83 to 8.70 lbf·ft

(1) Low Pressure Pipe

(2) High Pressure Pipe 2

(3) Inner Cover

(1) Hose Band

(2) Hose Clamps

(3) Heater Hoses

KiSC issued 03, 2016 A
